Size Inspection Instruments

The diametral dimension over balls/pins is an important characteristic for gears and splines.

The diametral size is measured with opposed Measuring Inserts. Masters are used to set the nominal size. FRENCO offers a wide range of instruments for the size inspection. Ultimately, your batch size and test frequency defines the suitability of one or the other device, we are happy to help.

From simple manual instruments, through to automatic, process-integrated test equipment, FRENCO offers a custom-made solution. Basically, there are three types.

Types

A pendulum motion of the hand is used to search for the reversal point with the aid of the dial indicator. After previous adjustment with a master, the difference to the nominal dimension is determined.

Produkt-Prospekt

With manual instruments, the guide profile facilitates the measurement since the search for the reversal point is no longer necessary. The measuring principle is fully automatable.

Produkt-Prospekt

The face stop ensures that the dimension over balls is always detected parallel to a plane surface. The changeover is easy and the device is suitable for automatic loading and measurement.

Produkt-Prospekt

Manual Instrument for Small Batches

Rocking Type IVA and AVA

  • Available for internal and external gears and splines
  • Quick and easy test with two opposed measuring inserts
  • Setting master with toothed sections available
  • Cost-efficient solution for small batches

Manual Instrument for Small and Medium Batches

Instruments with Guiding Profile AVM and IVM

  • Available for internal and external splines
  • The guiding profile is matched to that of the workpiece to be inspected
  • Due to the guiding profile, the dimension over balls can be established quickly and reliably
  • Robust, simple and independent of the operator
  • Fully toothed setting master available

Desk Instrument for Medium and Large Batches

Instruments with Guiding Profile AVM nx2, IVM nx2 and Tripod IVM 3x1

  • Available for internal and external splines
  • The guiding profile is matched to that of the workpiece to be inspected
  • The dimension over balls is inspected within seconds at multiple positions at the same time
  • Instead of measuring balls, radius discs are used to minimise wear
  • The measuring electronics allows the evaluation of the diametral size along the tooth width
  • Crowning and conicity are recorded
  • Evaluation via FRENCO Software LdynPro

Horizontal Sliding Bench for AVM nx2 Instruments

  • Easier handling for long shafts
  • Fixed measuring plane within the longitudinal course
  • Type-1 study: Repeatability for DoP averaged ≤ 1.3 μm
  • Type-2 study: Tmin for DoP averaged = 18 µm (R&R ≤ 20%)

Automation for Large Batches

Instruments with Guiding Profile

  • Available for internal and external splines
  • The dimension over balls is inspected at multiple positions at the same time
  • Evaluation along the tooth width
  • No operator influence
  • Cycle time of approx. 10 sec.
  • Measurement procedure and result-dependent workpiece sorting completely automated
  • Evaluation and automated data storage via FRENCO Software LdynPro

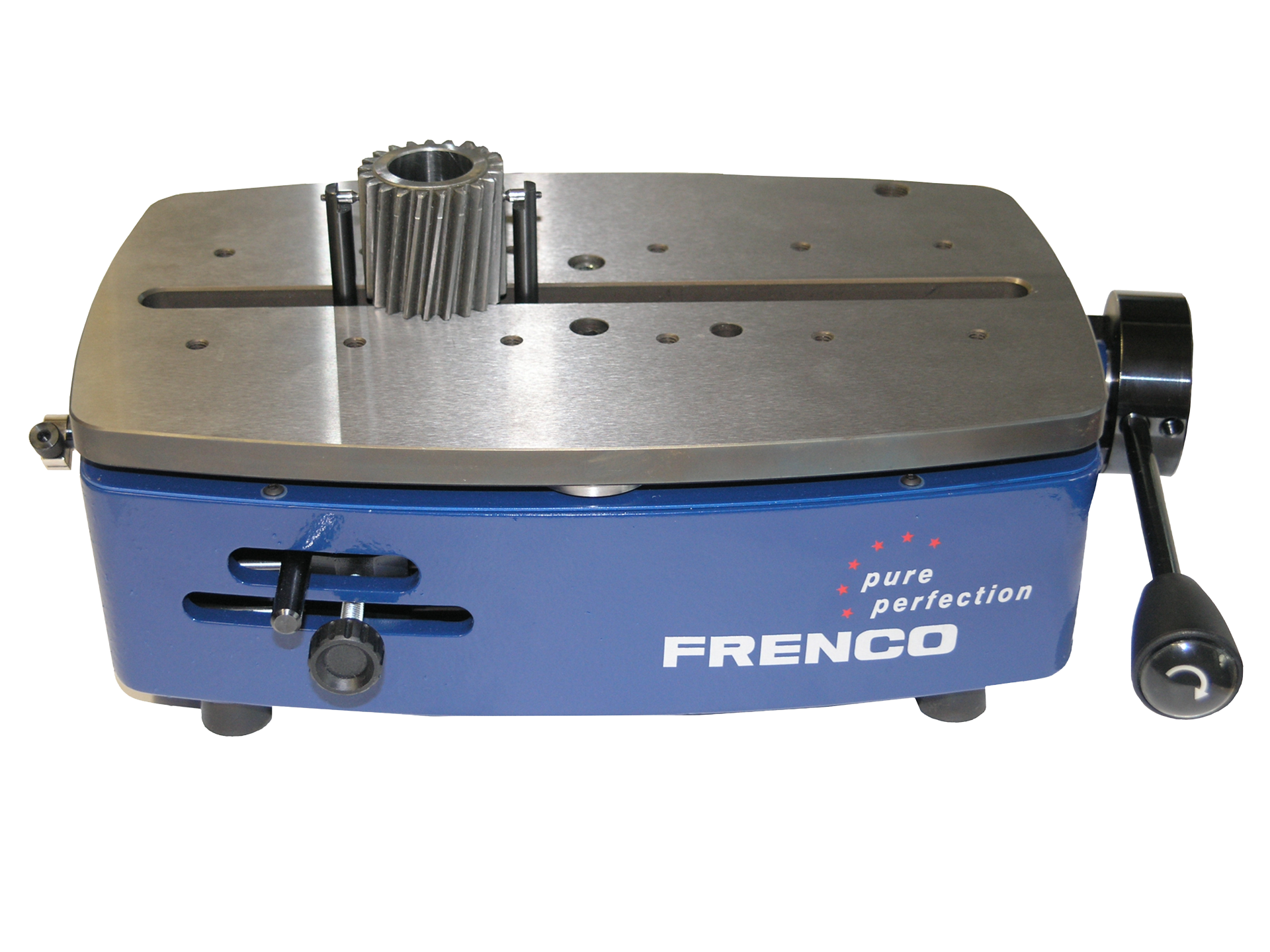

Desk Instrument for Small and Medium Batches

Instruments with Face Stop VPO and VPE

  • Available for internal and external gears and splines with suitable plane face
  • Inspection always parallel to the gearing axis
  • Stable measured value due to minor operator influence
  • Easy adjustment of the measuring force
  • Quick change from internal to external gearing
  • Quick change form small to large diameters
  • Setting master with toothed section available (recommended)

Automation for Large Batches

Instruments with Face Stop AVMH 1x2

  • Available for internal and external gears and splines with suitable plane face
  • Inspection always parallel to the gearing axis
  • No operator influence
  • Measurmenet procedure completely automated
  • Evaluation and automated data storage via FRENCO Software LdynPro

Produkt-Flyer Produkt-Video
