Universal Measuring Machines

Universal measuring machines record various characteristics of gears and splines in relation to an axis.

FRENCO offers different variants of machines that are set with masters. Your batch size and test frequency defines the suitability of one or the other machine. From manual probing of geometrical elements, through to automatic, process-integrated test equipment, FRENCO offers a custom-made solution. Basically, there are two types:

Machines with Ball Probe



  • Runout, roundness and diametrical size on cylindrical elements
  • Axial runout, flatness and distances on plane faces
  • Pitch, runout, tooth thickness, lead and tip diameter in relation to an axis on gears and splines
  • Probing on gears and splines is based on double flank contact

Multipoint Machines



  • Runout, roundness and diametrical size on cylindrical elements
  • Double flank gear test on gears
  • Rolling inspection on splines
  • Evaluation of measurement results in relation to a defined axis



Manual Machine for High Flexibility

Machines with Ball Probe

  • For external gears and splines
  • Diameter and bearing seat inspection
  • Output of runout, pitch and dimension over balls
  • Ideal for random sample measurements on the shop-floor
  • Very quick measurements due to manual operation
  • Turret with various ball diameters
  • Workpiece held between two centres, optionally with clamping chuck
  • Axis and temperature compensation for high accuracy
  • Max. diameter of specimen 230 mm, max. length 750 mm
  • Evaluation by FRENCO Software RKpro

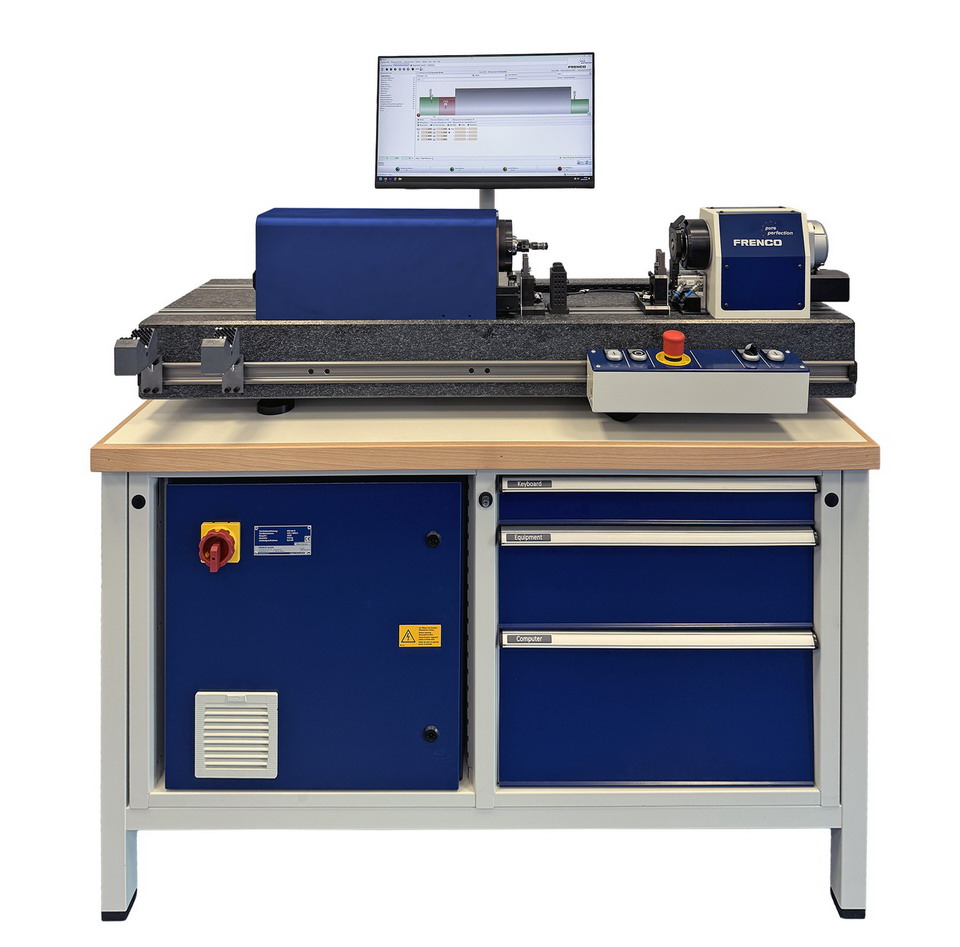

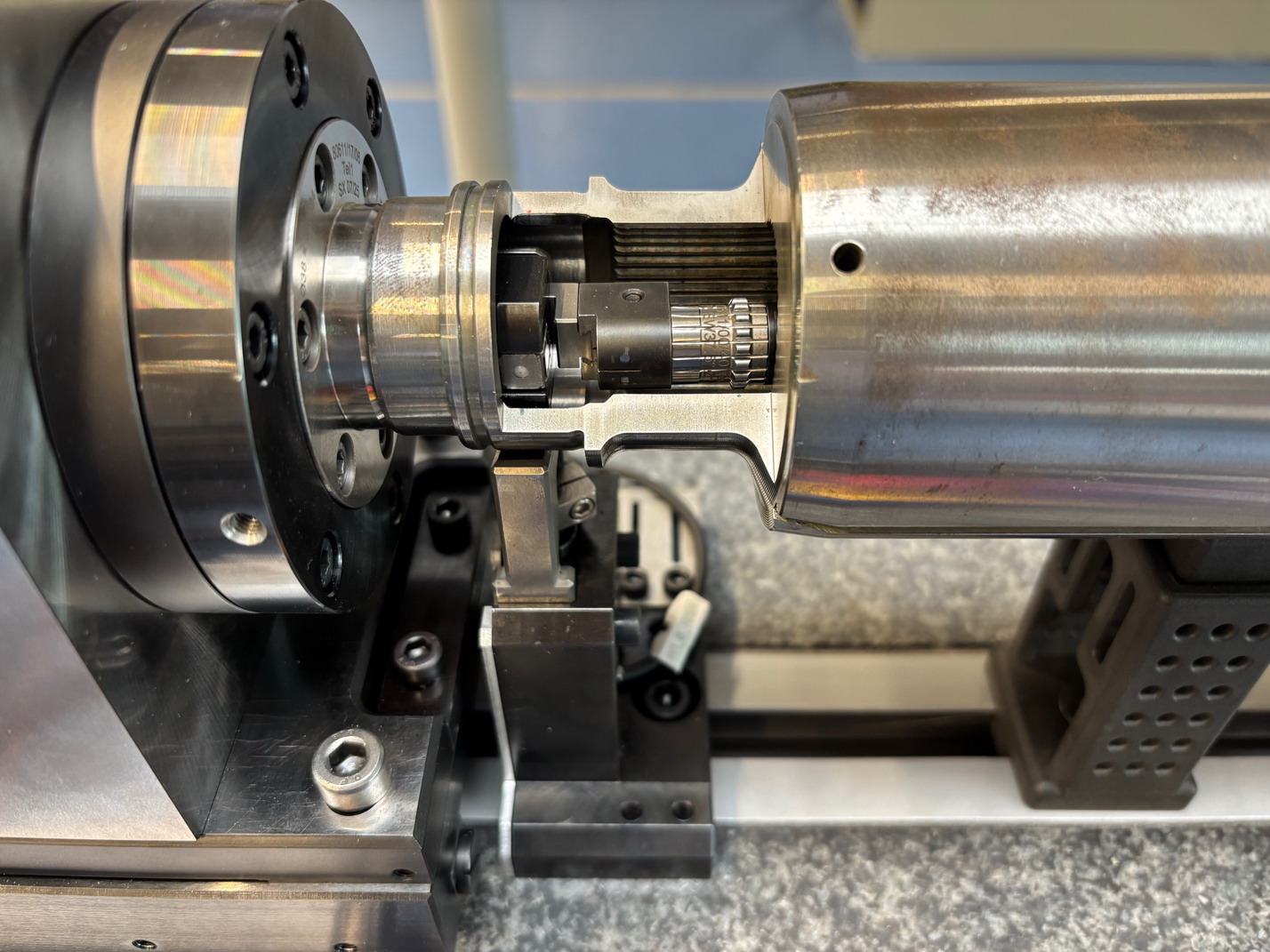

Horizontal Machine with NC-Control

Machines with Ball Probe

  • For external gears and splines
  • Diameter and bearing seat inspection
  • Output of runout, pitch and dimension over balls
  • Reliable and fully automated sample measurements on the shop-floor
  • Programmable turrent with various ball diameters
  • Workpiece held between two centres
  • Axis and temperature compensation for high accuracy
  • Max. diameter of specimen 230 mm, max. length 750 mm
  • Evaluation by FRENCO Software URM-K

Modification for heavy weight loads:

  • Specimen up to 30 kg
  • Automatic part ejection
  • Tip centre programmable, pneumatically activated
  • Can be integrated in handling system

Vertical Machine with NC-Control

Meachines with Ball Probe

  • For internal and external gears and splines, ring gears and ball tracks
  • Ideal for sample measurements on the shop floor
  • Automatic probe change possible
  • Workpiece held in 3-jaw chuck
  • Axis and temperature compensation for high precision
  • Max. diameter of specimen 300 mm, max. length 300 mm
  • Evaluation by FRENCO Software URM-K

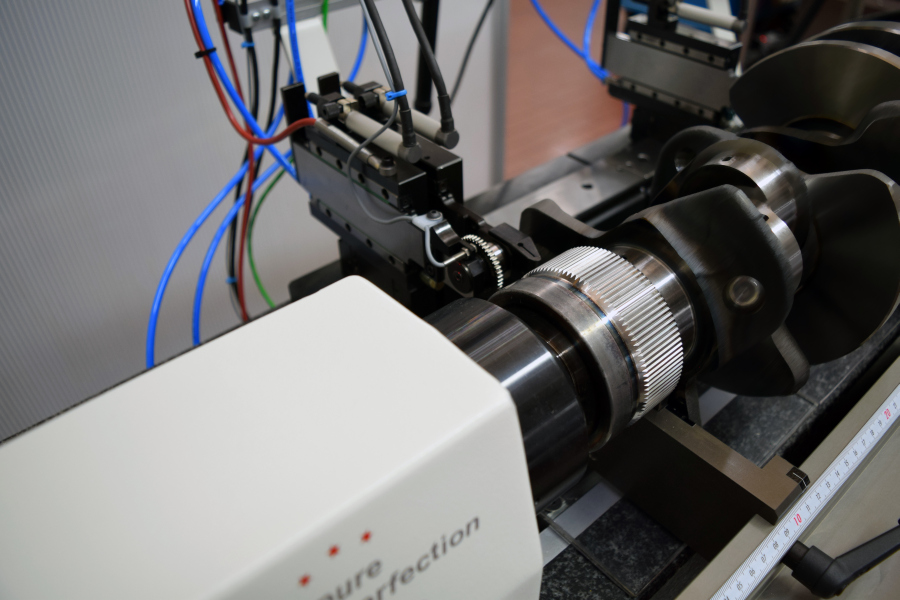

Multipoint Inspection Machine for Shafts

Machine with Multiple Carriages

  • For external shafts with gears and splines
  • Double flank gear inspection, rolling inspection and diameter inspection
  • Record multiple features simultaneously (approx. 15 sec. per shaft)
  • Workpiece held between two centres
  • Max. diameter of specimen 230 mm, max. length 750 mm
  • Customised design with up to eight measurement locations
  • Tip centre programmable, pneumatically activated
  • Can be integrated in handling system for 100%-inspection
  • Evaluation by FRENCO Software RMpro

Modification for Single Flank Gear Inspection

Roll Inspection with Master Gear

  • For external gears
  • Detection of the rolling chart for left and right flanks
  • Evaluation of backlash and tooth thickness
  • Evaluation of amplitude spectrums
  • Customised solutions possible
  • Evaluation by FRENCO Software RMpro
